Clam Shell Bucket
Clam Shell Bucket
A Hydraulic Clamshell Bucket is a two-jaw bucket attachment used for handling loose materials, soil, sand, blue-metal, gravel, mud, and bulk loading applications.
Blue-metal, gravel, mud, and bulk loading applications. It is operated by the excavator’s hydraulic system and provides high-volume grabbing capacity, ideal for loading trucks, clearing pits, and material handling.
Specifications
| Property | Value |
|---|---|
| Maximum Opening : | 2200 to 2300 mm |
| Bucket Material | Wear Resistance Sheet |
| Volumetric Capacity | 1.6 Cm^3 |
| Lifting Capacity | 1500 Kgs |
| Total Width of the bucket | 2000 to 2100 mm |
| Depth of the Bucket | 850 to 950 mm |

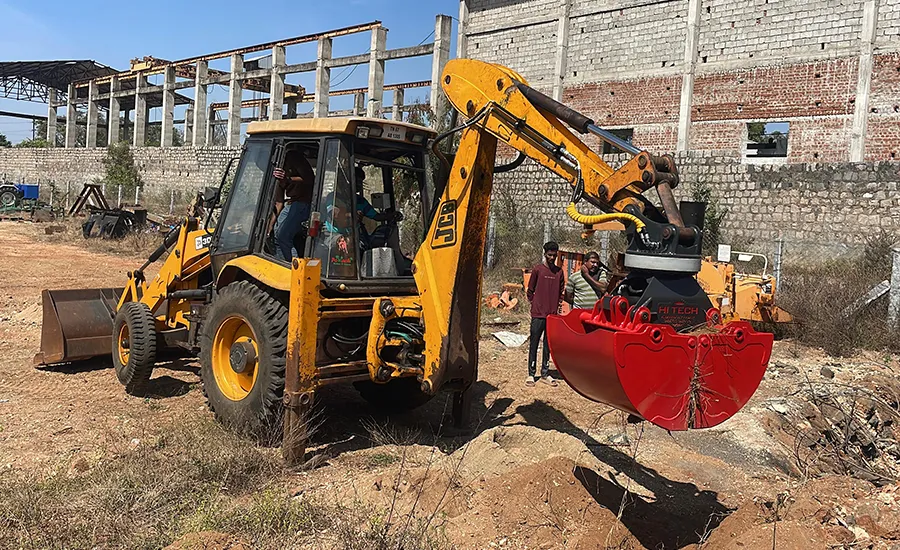

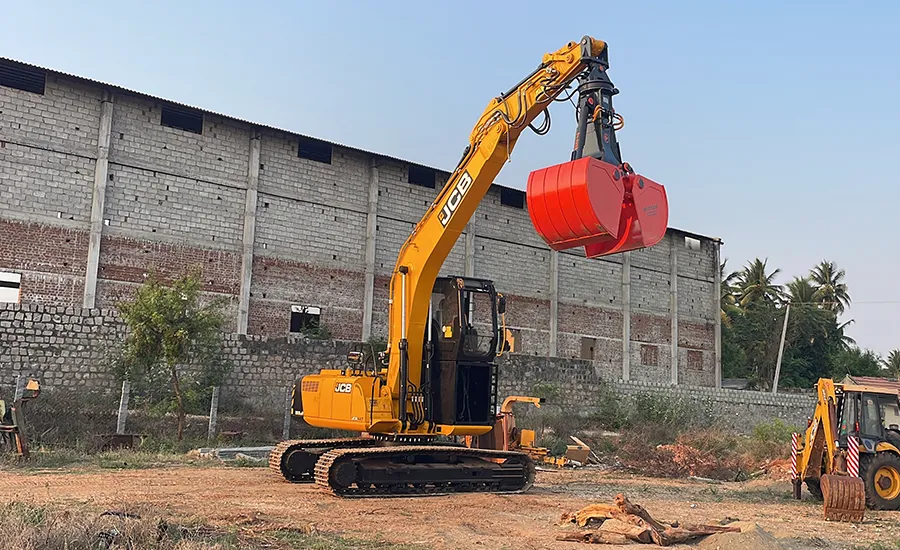

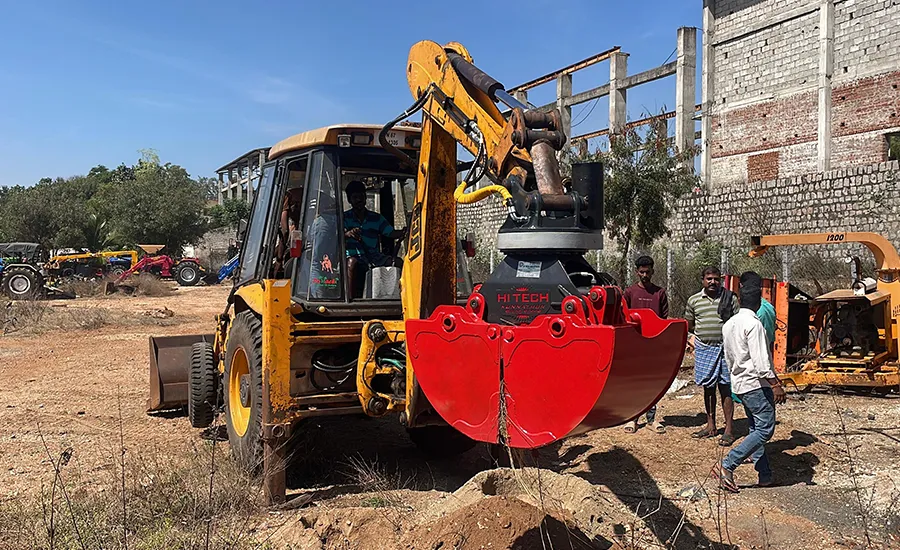

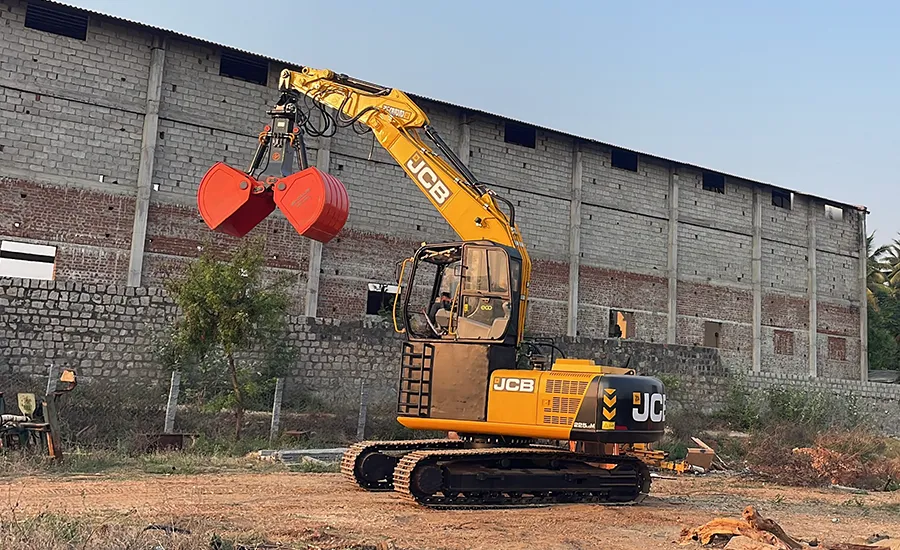

Gallery
